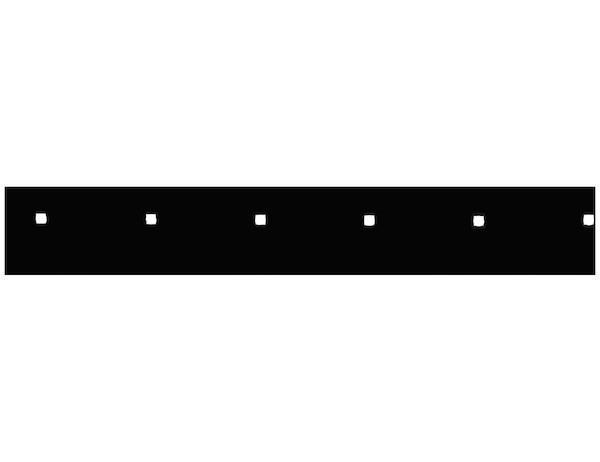

SAM Cutting Edge 3/8 x 6 x 90 Inch - High Carbon Steel-Replaces Meyer #09796

SAM Cutting Edge 3/8 x 6 x 90 Inch – High Carbon Steel-Replaces Meyer #09796

$0.00

This SAM replacement part for Meyer® (OEM #09796) features a bolt size of 0.500″ and an overall length of 90.0″. It includes 8 slots with hole spacing of 12.44″ from the first hole to the second and third holes. The height is 6.0″ with a thickness of 0.375″. The edge to the first hole measures 1.47″, and the top to the center of the bolt line is 1.00″. This durable component is designed to ensure reliable performance in various applications.

Call Us
SKU: BUY1301025 Category: Tag:

Description

  • Bolt Size: 0.500 “
  • Edge to First Hole (H): 1.47 “
  • First Hole to Second Hole (H1): 12.44 “
  • Height (B): 6.0 “
  • Number of Slots:  8
  • Rest of Hole Spacing (K): 12.44 “
  • Second Hole to Third Hole (J): 12.44 “
  • Thickness (T):  0.375 “
  • Top to Center of Bolt Line (C): 1.00 “
  • OEM Primary Brand:  Meyer®
  • OEM Primary Part Number:  09796
  • Length (A):  90.0 “
  • Meyer®:   09796

Additional information

Weight 60 lbs
