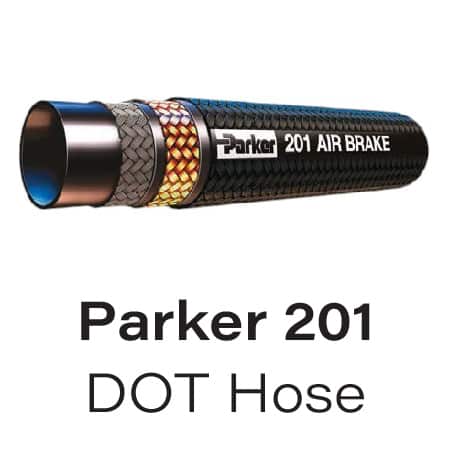

Parker 201 Hose for Air, Oil, Diesel Fuel, and Antifreeze – Reinforced Transportation Hose, DOT FMVSS 106 AIR BRAKE

Description

Parker’s 201 Hose is a versatile and durable solution for transportation applications, designed to handle a wide range of fluids including air, oil, diesel fuel, antifreeze, and petroleum-based hydraulic fluids. With a pressure range of 200-3000 PSI, this hose is reinforced with both a steel braid and a fiber braid, providing exceptional strength and flexibility. The fiber braided cover adds an additional layer of protection against abrasion, making this hose ideal for rugged and demanding applications.

The Parker 201 Hose meets SAE J517 100R5, SAE J1402 AII, and DOT FMVSS 106 AIR BRAKE – AII performance specifications, ensuring top-tier safety and reliability. Whether you’re working in transportation, military, or agriculture, this hose is engineered to perform under the toughest conditions. It is available in sizes ranging from 3/16″ to 3″ in diameter, providing a solution for various industry needs.

This hose is compatible with both field-attachable and Parkrimp fittings, giving you the flexibility to choose the best fitting for your specific requirements. Its wide range of applications, from fuel to lubricants, and its exceptional pressure capabilities make it the go-to hose for demanding environments.

Key Features:

• Pressure Range: 200-3000 PSI
• Reinforcement: One steel braid and one fiber braid for strength and durability
• Certification: Meets SAE J517 100R5, SAE J1402 AII, and DOT FMVSS 106 AIR BRAKE – AII performance specifications
• Temperature Range: Minimum -40°F (-40°C) to Maximum 302°F (150°C)
• Applications: Air, oil, diesel fuel, antifreeze, petroleum-based hydraulic fluids
• Hose Cover: Fiber cover for additional protection
• Fittings: Compatible with field attachable or Parkrimp fittings

Applications:

• Petroleum-based hydraulic fluids and lubricating oils
• Diesel fuels and antifreeze solutions
• Air and coolants for transportation, military, and agriculture industries

Technical Specifications:

• Minimum Operating Temperature: -40°F (-40°C)
• Maximum Operating Temperature: 302°F (150°C)
• Media Compatibility: Coolants, fuels, lubricants, petroleum hydraulic fluids
• Maximum Operating Pressure: Up to 3000 PSI (210 bar, 21.0 MPa)
• Hose Reinforcement: One braid of steel wire and one braid of fiber
• Cover Type: Fiber cover for abrasion resistance
• Size Range: 3/16″ to 3″ diameter
